What Is Trenchless Pipe Rehabilitation?

Addressing the Challenges of Aging Underground Sewer Networks

 an extensive network of stormwater drains and sewer pipelines serving its densely populated urban areas. Some underground pipelines, particularly those in older districts, have been in service for more than 30 years. Sewer pipes are especially vulnerable to deterioration because they are frequently exposed to corrosive gases generated by wastewater, which can gradually damage pipe materials and reduce structural integrity.

Maintaining these underground drainage systems is essential for reliable wastewater collection, effective stormwater management, and sustainable urban infrastructure.

As aging pipelines require increasing attention, trenchless pipe rehabilitation technologies provide an alternative to conventional open-cut replacement. By reducing the need to excavate roads and surrounding surfaces, trenchless methods can help minimize traffic disruption, shorten construction periods, and reduce inconvenience to nearby residents and businesses.

What Is Trenchless Pipe Rehabilitation?

Trenchless pipe rehabilitation is a method of renewing existing underground pipelines without excavating the entire pipeline route.

Depending on the rehabilitation method and site conditions, construction may require only a limited number of access points or temporary shafts. Specialized equipment and new lining materials are introduced into the existing pipeline to form a new pipe structure or lining inside the old pipe.

Compared with conventional open-cut replacement, this approach can reduce excavation requirements and help maintain normal urban activities during construction.

Trenchless rehabilitation is applicable to various underground drainage and sewer systems. The appropriate method depends on the existing pipe condition, diameter, alignment, structural requirements, wastewater flow, and project specifications.

Spiral Winding Technology: Renewing Pipes from Within

Spiral winding pipe rehabilitation is one of the established trenchless methods used for renewing existing sewer and drainage pipelines.

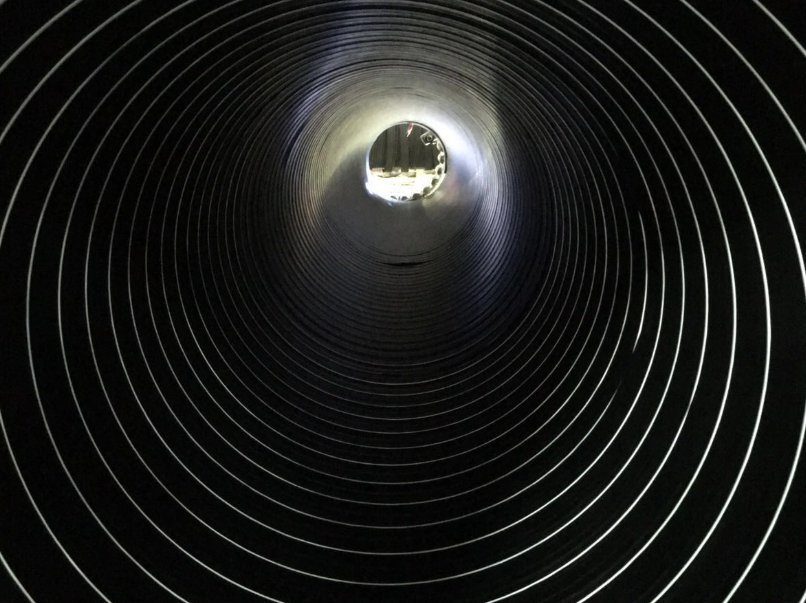

The process uses a specialized spiral winding machine to continuously form a new pipe inside the existing pipeline. A continuous PVC or other specified profile strip is fed into the winding machine and interlocked or joined into a spiral pipe structure. Depending on the selected system, steel reinforcement can be incorporated into the profile to improve structural performance.

The newly formed pipe is installed within the existing host pipe, reducing the need to remove the old pipeline. Depending on the rehabilitation design, the annular space between the new liner and the existing pipe may be grouted to provide additional support and help meet the project's structural requirements.

A key feature of suitable spiral winding systems is their ability to operate inside existing pipelines while maintaining wastewater flow under appropriate site conditions. This can reduce or avoid flow diversion, although the feasibility of live-flow construction must be assessed for each project.

Key Benefits of Spiral Winding Pipe Rehabilitation

1. Reduced Excavation

Spiral winding equipment can be introduced through suitable access points, limiting the need for extensive road excavation and helping preserve existing surface infrastructure.

2. Construction in Existing Urban Environments

The method is suitable for projects where road closures, traffic management, and disruption to nearby properties must be carefully controlled.

3. In-Pipe Installation

The new pipe is formed within the existing pipeline, making spiral winding a practical option for selected sewer and stormwater rehabilitation projects.

4. Potential for Live-Flow Rehabilitation

Depending on the equipment configuration, wastewater level, pipeline geometry, and construction plan, rehabilitation may be carried out without completely stopping the existing flow.

5. Adaptability to Different Pipeline Diameters

Different spiral winding machine configurations can be selected according to pipeline diameter, access conditions, and project requirements. Specialized systems may also be designed for large-diameter pipelines and certain non-circular sections.

Spiral Winding Equipment for Sewer Rehabilitation Projects

The performance of a spiral winding rehabilitation system depends on equipment configuration, profile-strip design, installation conditions, and construction quality.

Typical equipment systems may include fixed-type spiral winding machines, expanding-type winding machines, and travelling-type winding machines. Each configuration serves different construction requirements and pipeline conditions.

For municipal sewer and stormwater projects, the equipment selection process should consider:

Existing pipeline diameter and cross-sectional geometry

Pipeline condition and required structural performance

Wastewater flow and construction access

Profile material and reinforcement requirements

Grouting requirements and annular-space design

Installation distance, site layout, and project schedule

Selecting the appropriate equipment and rehabilitation design helps contractors develop a construction plan suited to the specific pipeline and site conditions.

Supporting Trenchless Infrastructure Renewal

As cities continue to maintain and upgrade aging underground infrastructure, trenchless rehabilitation offers an important alternative to full pipeline excavation and replacement.

Spiral winding technology combines in-pipe pipe formation with specialized mechanical equipment, making it a useful option for selected sewer and stormwater rehabilitation projects where minimizing excavation is a priority.

Qingdao Jinjiedong Plastic Machinery Co., Ltd. specializes in spiral winding pipe rehabilitation equipment and related pipe rehabilitation solutions. The company provides equipment options for different pipeline diameters and construction requirements, supporting contractors and infrastructure service providers undertaking trenchless sewer rehabilitation projects.

For project-specific recommendations, the existing pipe condition, diameter, wastewater flow, structural requirements, and construction environment should be evaluated before selecting the appropriate spiral winding system.
