From the perspective of the extruder, the core function of the production line is to transform PVC raw materials into high-quality plastic profiles through controlled melting, plasticizing, extrusion, shaping, and cooling processes.

Main Functions of PVC Profile Production Line

1. PVC Material Plasticizing and Extrusion

The main function of the extruder is to heat, melt, mix, and homogenize PVC materials into a stable molten state. The extruder provides continuous and uniform material flow to the die head for profile forming.

2. Profile Shape Forming

Through a specially designed extrusion die, the molten PVC material is shaped into different profile structures, including:

• PVC spiral wound locking profiles

• Reinforced PVC profiles

• Pipe liner profiles

• Industrial PVC profiles

• Construction PVC profiles

For spiral wound pipe rehabilitation, the die produces profiles with accurate male and female locking structures to ensure reliable connection during winding.

3. Stable Production Control

The production line controls:

• Extrusion temperature

• Screw speed

• Pressure

• Cooling temperature

• Haul-off speed

• Profile dimensions

The PLC control system ensures stable and continuous production.

4. Product Quality Improvement

The production line ensures:

• Uniform wall thickness

• Accurate profile dimensions

• Smooth surface finish

• Stable mechanical performance

• Consistent product quality

Equipment

Function

Automatic Feeding System

Provides continuous PVC material supply

Extruder

Melts, mixes, and plasticizes PVC materials

Extrusion Die

Forms the required profile shape

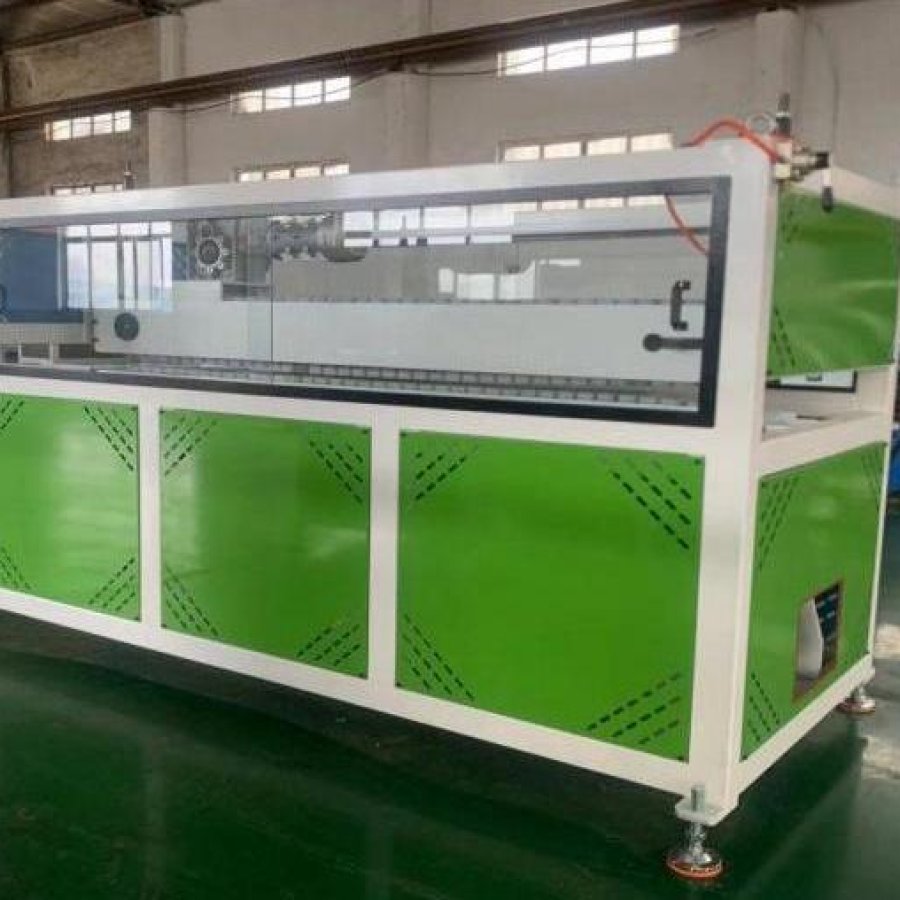

Vacuum Calibration Unit

Controls profile dimensions

Cooling Tank

Stabilizes the profile after forming

Haul-Off Machine

Maintains constant production speed

Cutting Machine

Cuts profiles into required lengths

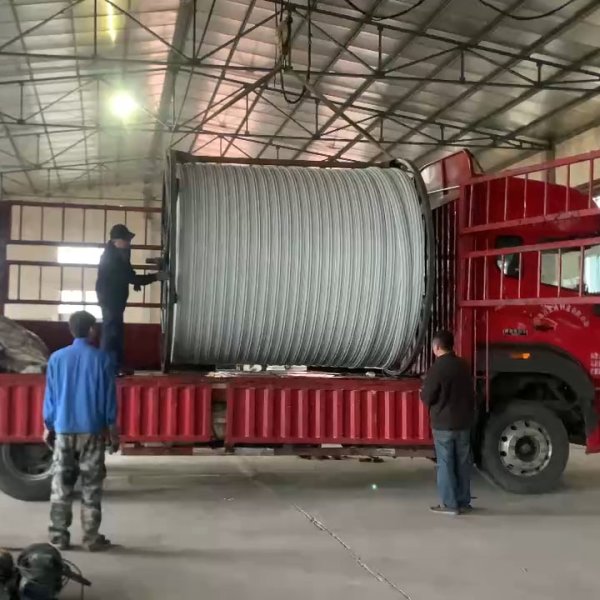

Winding Machine

Collects continuous profiles into rolls

PLC Control System

Controls the entire extrusion process

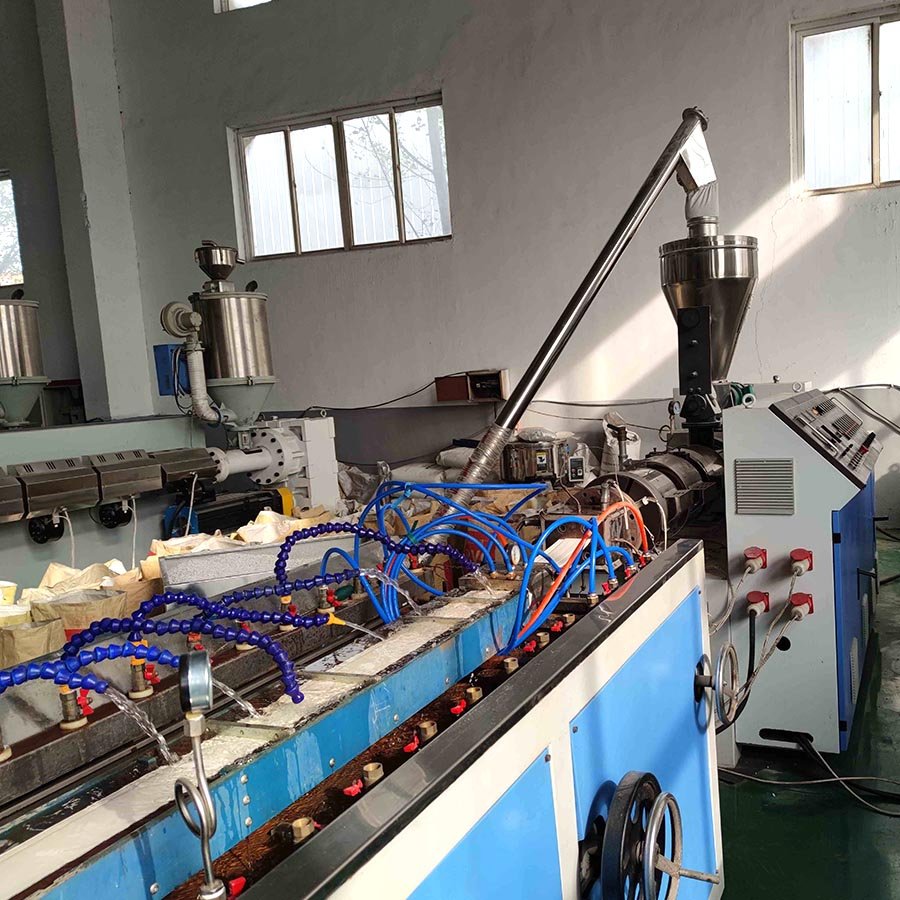

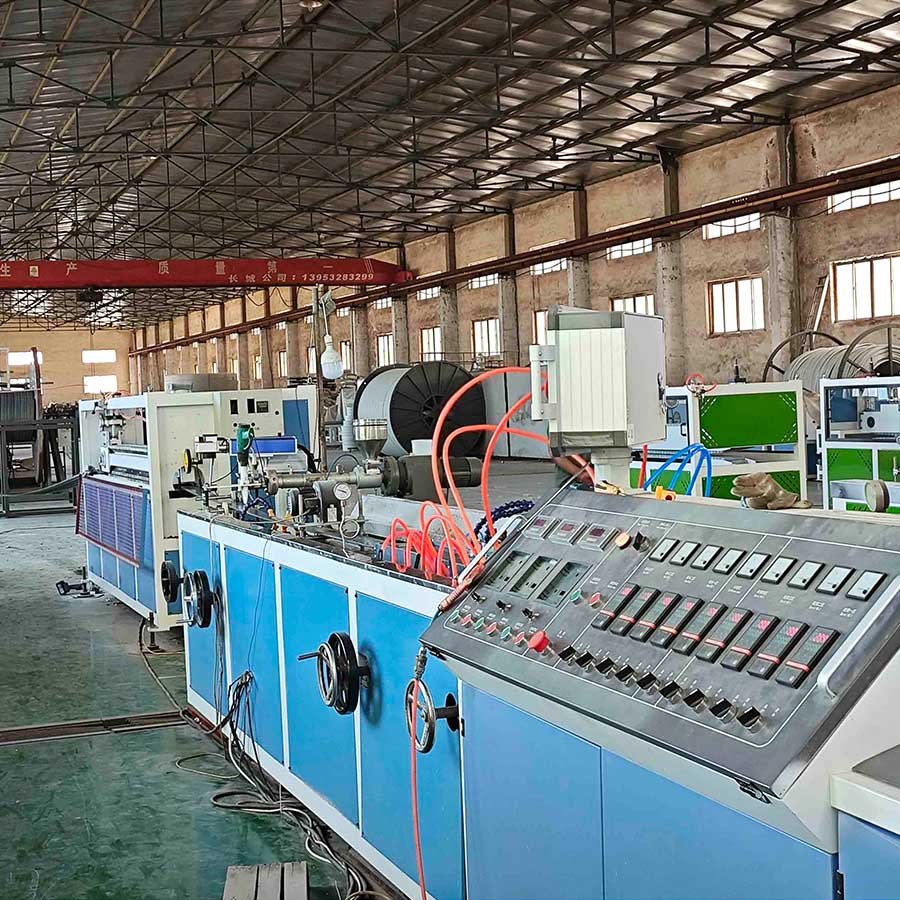

Working Principle of PVC Profile Production Line

The production process is based on plastic extrusion technology:

PVC Raw Material → Feeding → Extrusion Plasticizing → Die Forming → Vacuum Calibration → Cooling → Haul-Off → Cutting or Winding → Finished PVC Profile

Applications of PVC Profile Production Line

1. Spiral Wound Pipe Rehabilitation

The main application in trenchless technology is producing PVC profiles for:

• Sewer pipe rehabilitation

• Stormwater pipeline rehabilitation

• Underground drainage repair

• Large diameter pipeline renewal

The production process:

PVC Profile Production Line → PVC Spiral Winding Machine → New Structural Pipe Liner

2. PVC Pipe and Liner Manufacturing

The line can also produce:

• PVC pipe liners

• Drainage profiles

• Protective profiles

• Customized plastic profiles

3. Construction and Industrial Profiles

Applications include:

• Building profiles

• Decorative profiles

• Industrial components

• Special engineering profiles
