UV CIPP Liner Production Line

What Is UV CIPP Liner?

UV CIPP (Ultraviolet Cured-In-Place Pipe) liner is a glass fiber reinforced composite liner impregnated with UV-sensitive resin. It is installed into existing pipelines and cured with UV light to form a new structural pipe.

Core structure includes:

• Inner protective foil

• Fiberglass reinforcement layer

• UV-reactive resin system

• Outer protective film (anti-UV & anti-leakage) (Trenchless Technology)

Production Line Overview

This production line is designed for continuous, industrial-scale manufacturing of UV liners with consistent quality and high efficiency.

Main Equipment Configuration:

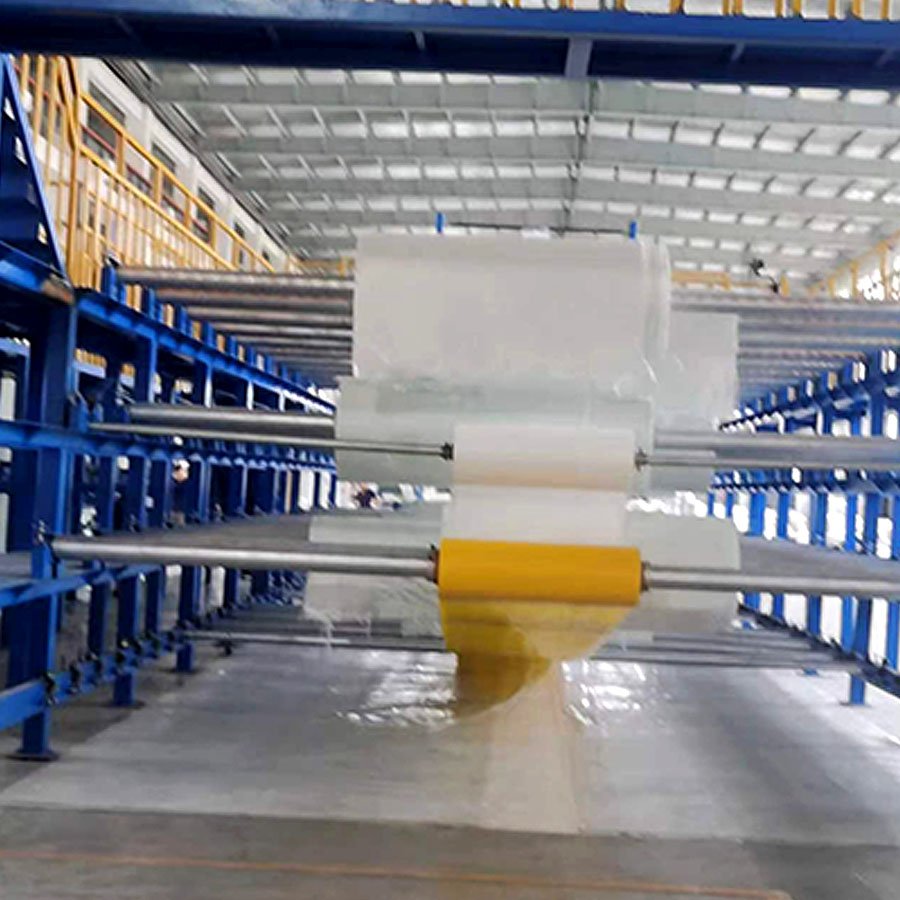

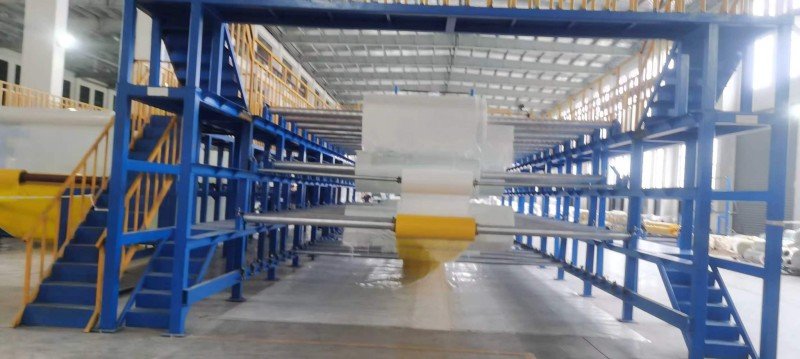

• Raw material unwinding system

• Fiberglass forming system

• Resin impregnation (wet-out) unit

• Calibration & thickness control system

• Film wrapping system

• Cooling & curing protection system

• Automatic cutting & packaging system

Production Process

Fiberglass feeding & forming

Multi-layer structure assembly

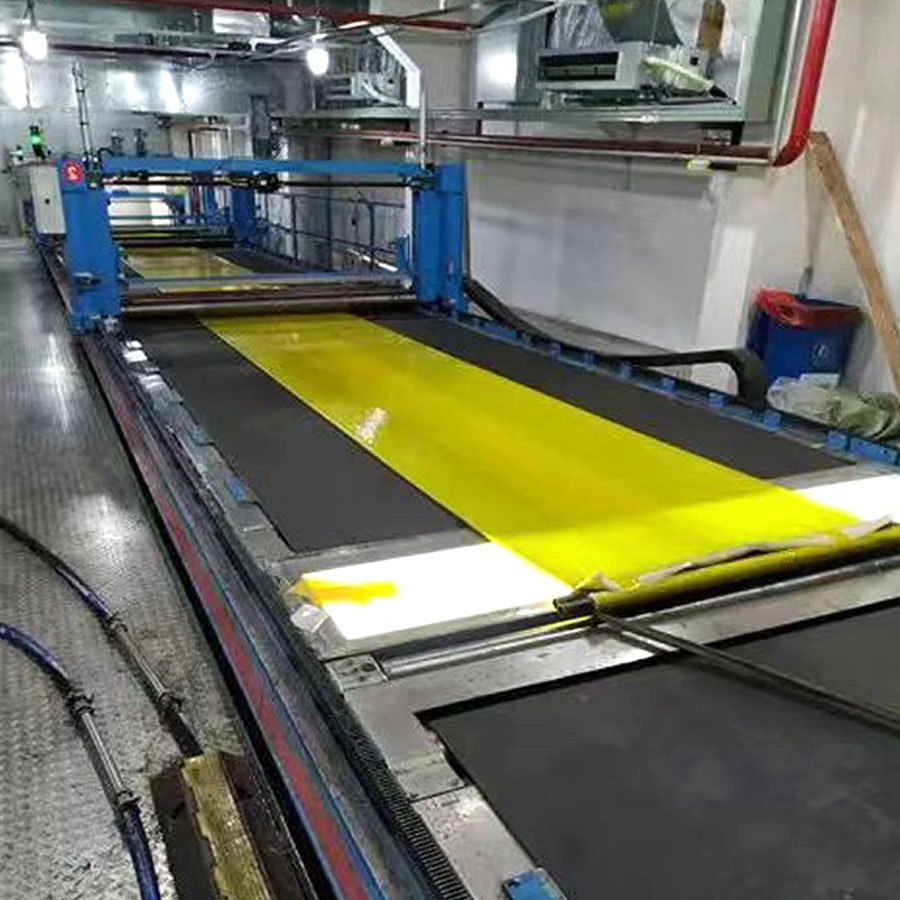

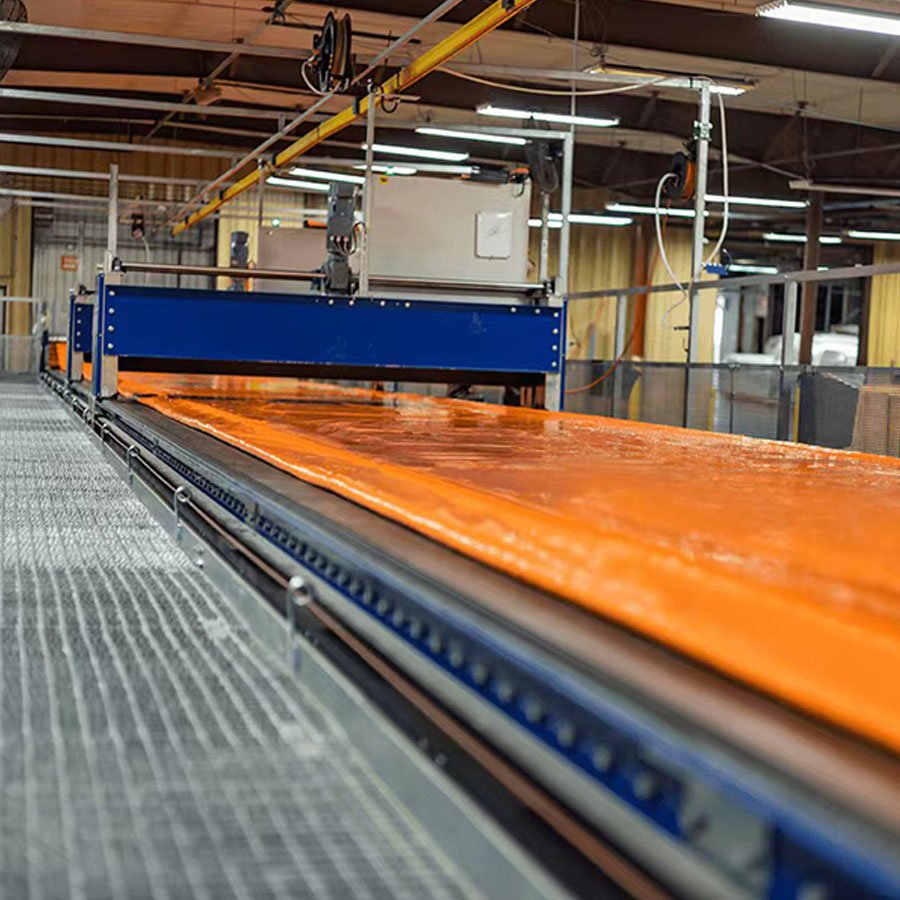

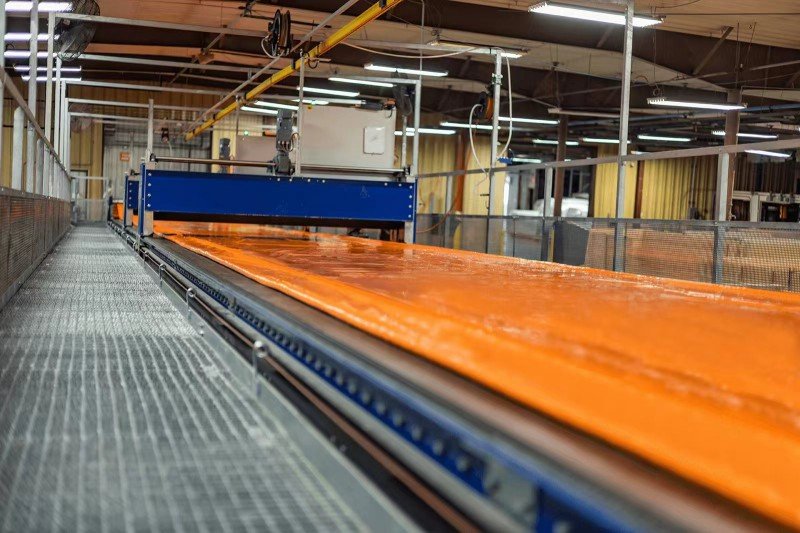

Vacuum resin impregnation (wet-out)

Thickness calibration & compaction

Inner/outer film wrapping

Light-proof packaging

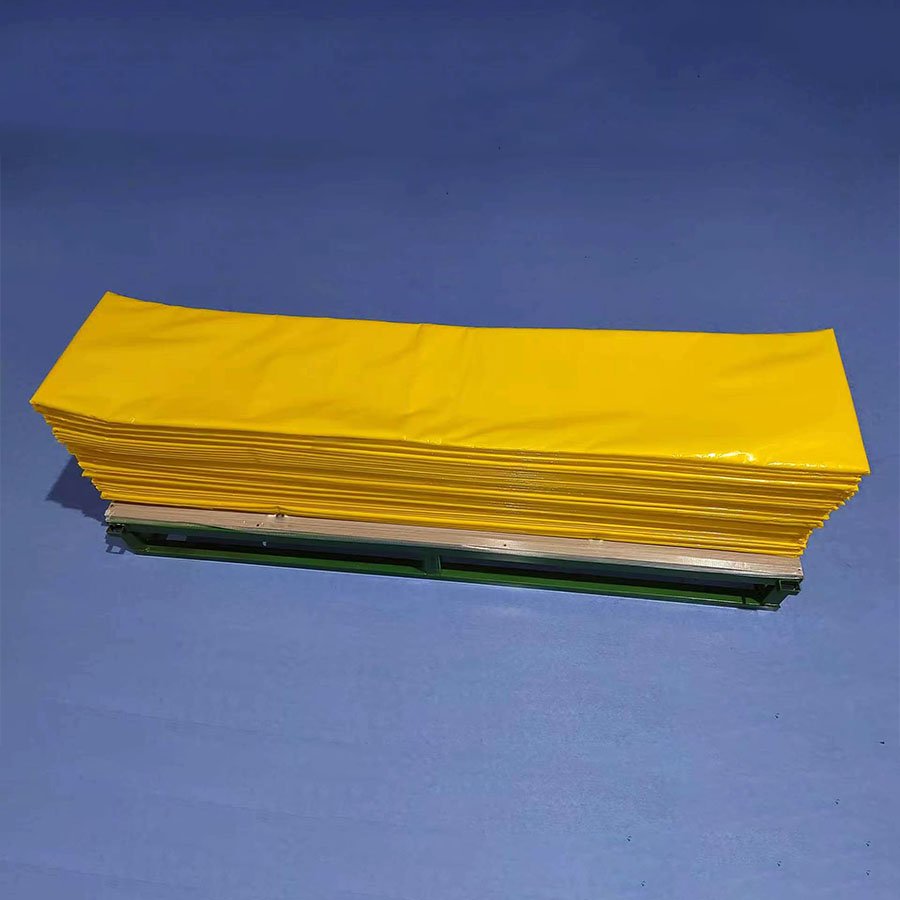

Finished liner rolling & storage

➡️ Entire process ensures uniform resin distribution and structural consistency, which is critical for liner strength and durability. (Trenchless Technology)

Key Technical Advantages

1. High Structural Strength

Glass fiber reinforced composite

Superior mechanical properties vs traditional felt liners

Suitable for both gravity and pressure pipelines

2. Fast Curing Performance

UV curing within minutes on-site

No dependency on temperature or water/steam curing (Precision Trenchless LLC)

3. Factory Pre-Impregnation

No on-site resin mixing

Stable quality & reduced human error

Faster installation efficiency (Pro Pipe)

4. Long Service Life

50–100 years lifespan

Corrosion-resistant and chemical-resistant (Omega Liner Company)

5. Environmental & Cost Benefits

No excavation required

Reduced emissions and disruption

Lower lifecycle cost

Technical Specifications (Customizable)

Item

Diameter Range

Wall Thickness

Resin Type

Production Speed

Liner Length

Control System

Application Fields

Municipal sewer rehabilitation

Stormwater pipelines

Industrial pipelines

Culverts & large-diameter pipes

Pressure pipelines (custom design)

Target Customers

Trenchless contractors

Pipeline rehabilitation companies

Government infrastructure suppliers

Distributors & rental companies

Investors building UV liner factories

ROI & Business Value

Investing in a UV CIPP liner production line allows you to:

Eliminate dependence on imported liners

Reduce project costs by 30–50%

Increase profit margins significantly

Enter high-growth trenchless technology market

Why Choose Our Production Line?

Turnkey factory solution (equipment + layout + training)

Stable liner quality (ISO-level manufacturing control)

Custom design for your market (diameter, output, resin system)

Global installation & technical support

Fast delivery & scalable expansion
