Spiral Wound Pipe Rehabilitation Equipment for Municipal Sewer Repair

Spiral Wound Pipe Rehabilitation Equipment

Overview

Spiral Wound Pipe Rehabilitation Equipment is a trenchless sewer rehabilitation system used to renew deteriorated pipelines without excavation. The machine continuously winds PVC or steel-reinforced PVC profiles inside existing pipelines, forming a new structural liner while maintaining pipeline operation.

Our equipment is suitable for municipal sewer networks, stormwater drainage systems, industrial pipelines, and large-diameter culverts.

Applicable Pipe Diameter

DN300 – DN3000

Applicable Materials

• PVC Spiral Profile

• Steel Reinforced PVC Profile

• HDPE Profile

• PP Profile

Rehabilitation Method

Mechanical Spiral Winding Technology

How Does Spiral Wound Pipe Rehabilitation Work?

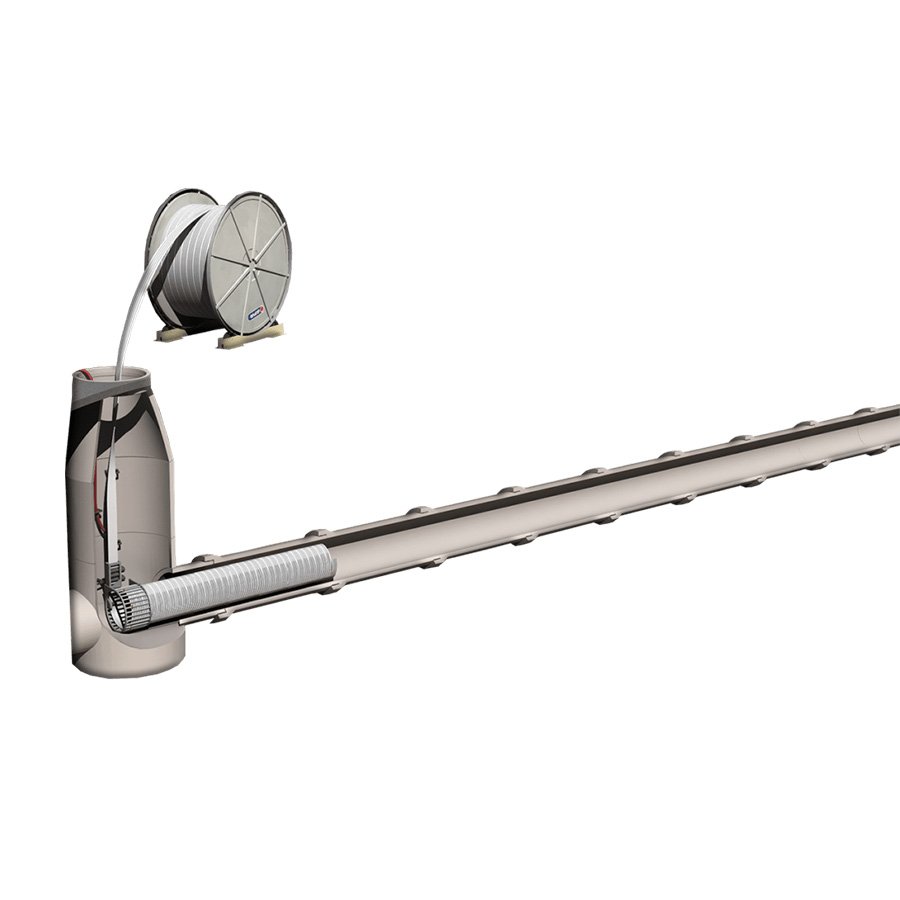

The winding machine is positioned inside the existing pipeline through a manhole.

PVC profiles are continuously fed into the machine and mechanically locked together to form a new liner. The liner creates a new pipe within the existing host pipe. Depending on project requirements, the annular space can be filled with grout to achieve structural rehabilitation.

Construction Process

1. Pipeline inspection

2. Pipeline cleaning

3. Equipment installation

4. Spiral profile winding

5. Annular space grouting

6. Final CCTV inspection

Main Advantages

No Excavation Required

Rehabilitate pipelines without digging roads or disrupting traffic.

Suitable for Large Diameters

Applicable for pipelines from DN300 to DN3000.

Continuous Installation

Fast installation speed with minimal service interruption.

Long Service Life

Expected design life exceeds 50 years.

Cost Effective

Lower total project cost compared with open-cut replacement.

Environmentally Friendly

Reduced carbon emissions and construction waste.

Auxiliary Power Technology

Our proprietary Auxiliary Power Technology ensures stable equipment operation in locations with unstable voltage or insufficient power supply.

This solution is especially suitable for:

• Remote project sites

• Large diameter rehabilitation projects

• Long-distance sewer rehabilitation

Continuous municipal construction projects

Typical Applications

Municipal Sewer Rehabilitation

Renew aging sewer systems without excavation.

Stormwater Drain Rehabilitation

Restore hydraulic performance and structural integrity.

Industrial Pipeline Rehabilitation

Repair corroded underground process pipelines.

Large Diameter Culvert Renewal

Extend infrastructure life while minimizing disruption.

Why Choose Qingdao Jiedong?

Manufacturer of trenchless rehabilitation equipment

Complete spiral wound solution supplier

PVC profile extrusion line available

Construction training and technical support

Equipment rental service

Experienced international project team

Frequently Asked Questions

What is Spiral Wound Pipe Rehabilitation?

A trenchless technology that creates a new pipe inside an existing pipeline using continuously interlocked PVC profiles.

What pipe sizes can be repaired?

DN300 to DN3000 depending on equipment configuration.

What is the service life of the liner?

Typically more than 50 years when properly designed and installed.

Is excavation required?

No. Installation is normally performed through existing manholes.

Can the system be used for large diameter sewers?

Yes. The technology is widely used for large municipal sewer rehabilitation projects.

Request a Proposal

Send us your project information:

Pipe Diameter

Pipe Length

Existing Pipe Material

Country

Project Photos

Our engineers will recommend the most suitable rehabilitation solution within 24 hours.
