 Spiral Wound Lining Technology

Spiral wound lining is a trenchless rehabilitation technology that uses a continuous thermoplastic profile strip to form a new structural liner inside existing gravity pipelines. Developed during the 1980s, this method has accumulated more than four decades of successful engineering applications and has been used to rehabilitate millions of metres of pipelines worldwide.

Like CIPP and slip lining, spiral wound lining provides a structural rehabilitation solution for deteriorated pipelines while minimizing excavation, traffic disruption, and environmental impact.

## Structural Rehabilitation Solution

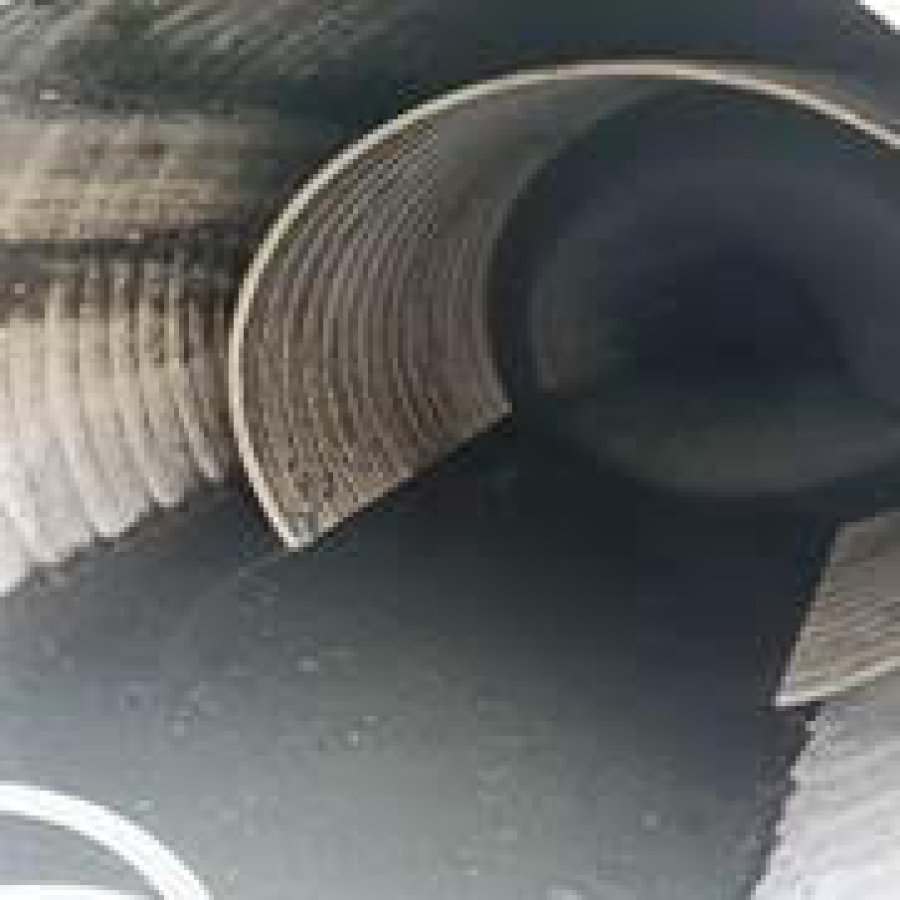

Spiral wound lining restores the structural integrity, hydraulic performance, and long-term reliability of ageing sewer, stormwater, drainage, and culvert pipelines. Once installed, the liner forms a new pipe inside the existing host pipe, significantly extending pipeline service life—typically by **50 years or more**.

The technology is suitable for rehabilitating pipelines constructed from concrete, brick, clay, steel, cast iron, and other materials.

## Mechanical Installation Process

Unlike some trenchless rehabilitation methods, spiral wound lining is installed using a completely mechanical process.

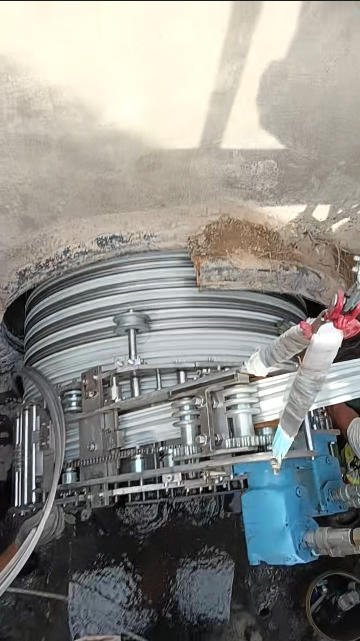

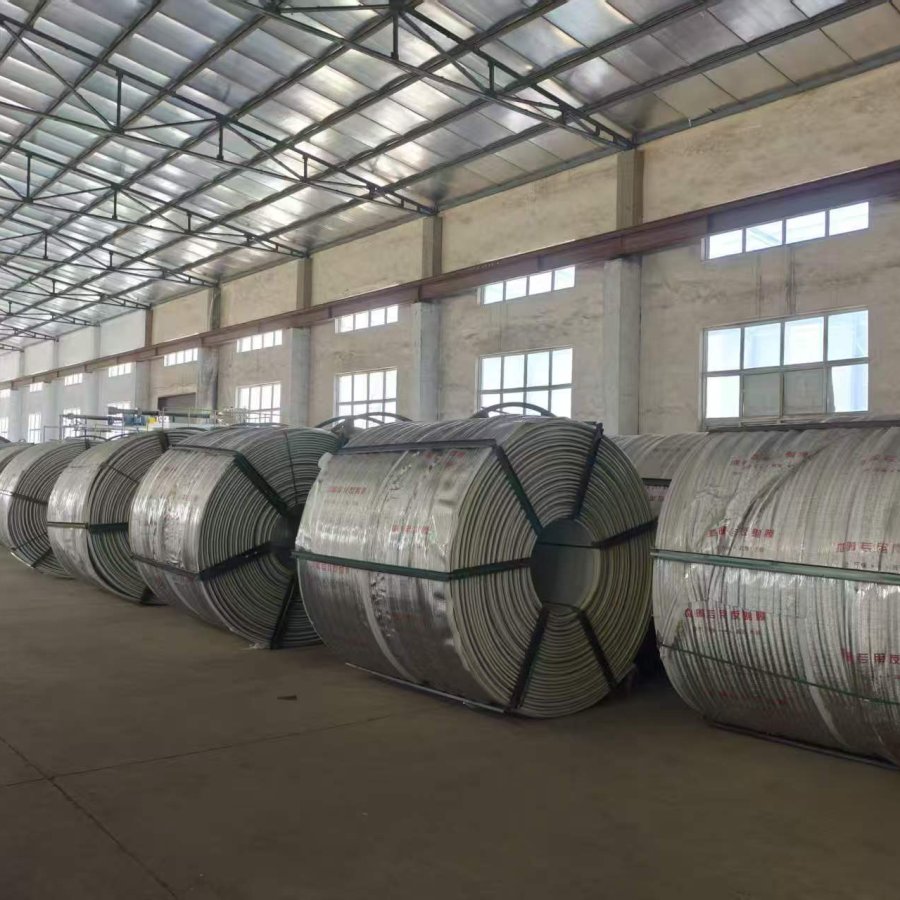

A continuous PVC profile is wound and mechanically interlocked inside the existing pipeline using a specialized winding machine. The machine travels through the pipeline between access points while continuously forming the liner.

The process does not require:

* Heat curing

* UV curing

* Steam curing

* Hot water curing

* Temporary softening of the liner

After installation, the annular space between the liner and the host pipe can be filled with cementitious grout when structural reinforcement or liner stabilization is required.

## Suitable for Large Diameter Pipelines

Modern spiral wound technology has expanded from conventional sewer rehabilitation to large-diameter municipal pipelines and culverts.

Advanced winding equipment can automatically adjust the liner diameter during installation, allowing the liner to maintain close contact with pipelines that have varying internal diameters or irregular geometries.

This flexibility makes the technology suitable for a wide range of municipal infrastructure rehabilitation projects.

## Key Benefits

### Structural Performance

* Provides a fully structural rehabilitation solution

* Restores load-bearing capacity without relying on the existing host pipe

* Suitable for severely deteriorated pipelines

### High Strength with Lightweight Design

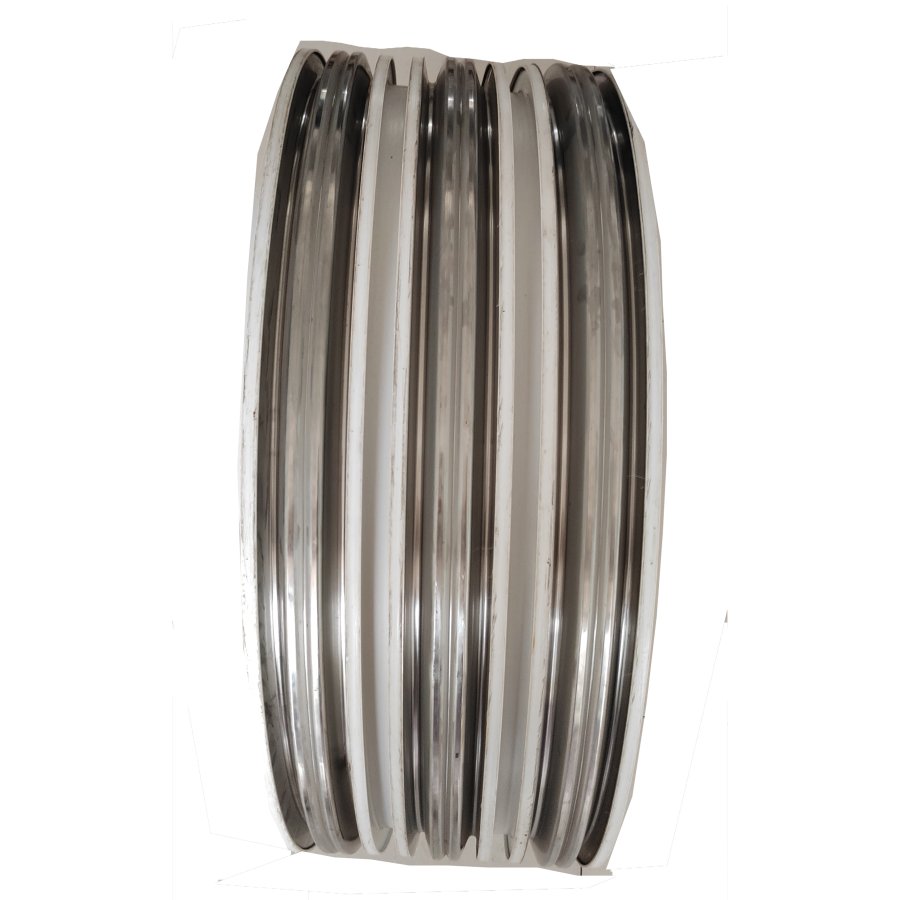

The ribbed PVC profile provides an excellent strength-to-weight ratio, reducing material consumption while maintaining high structural performance.

### No Flow Bypass Required

In many gravity sewer applications, installation can be completed while wastewater continues flowing through the pipeline, eliminating or minimizing bypass pumping requirements.

### Minimal Surface Disruption

Because installation is performed through existing access chambers, excavation is minimized, reducing:

* Traffic disruption

* Construction time

* Noise

* Environmental impact

* Community disturbance

### Improved Hydraulic Performance

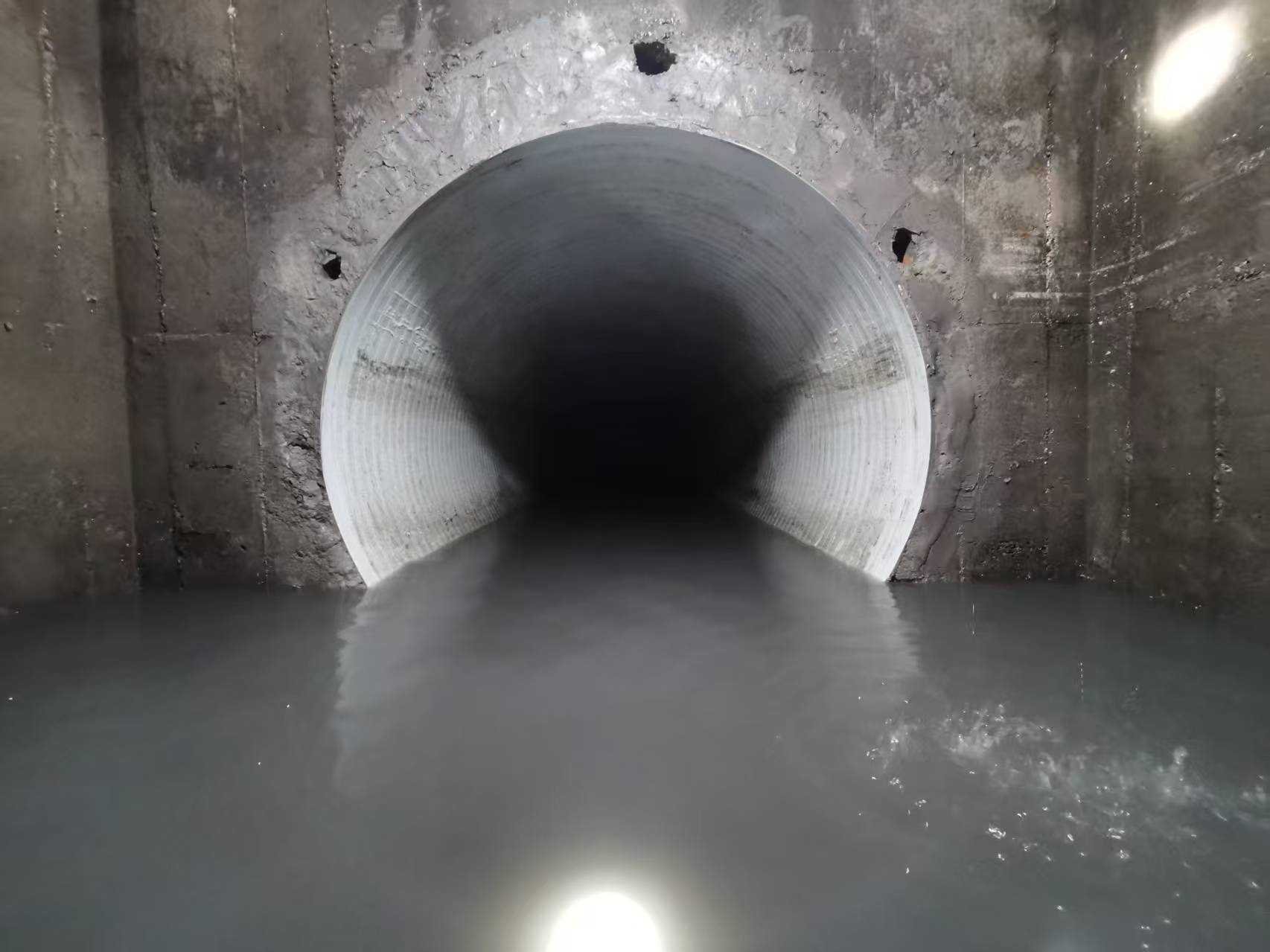

The new liner provides a smooth circular internal surface that improves hydraulic efficiency and reduces friction losses.

### Adaptability

Spiral wound lining is suitable for:

* Circular pipelines

* Pipelines with varying diameters

* Long pipeline sections

* Large-diameter sewers

* Stormwater pipelines

* Culverts

* Drainage systems

## Long-Term Service Life

Properly designed and installed spiral wound liners provide a design service life of **50 years or longer**, helping municipalities and utility owners reduce lifecycle maintenance costs while improving network reliability.

## Continuous Technology Development

Over the past several decades, advances in profile design, materials, winding equipment, and installation techniques have significantly expanded the application range of spiral wound lining.

Today's systems offer:

* Larger rehabilitation diameters

* Higher structural capacities

* Improved installation efficiency

* Enhanced adaptability to complex pipeline conditions

Ongoing research and engineering development continue to broaden the applications of spiral wound lining, making it one of the leading trenchless technologies for structural rehabilitation of deteriorated gravity pipelines worldwide.
